Preview menu

Controls the zoom percentage of the well sketch preview (6). Default is 'Whole page'.

Well sketch menu

Functions controlling the well sketch.

Header menu

Functions controlling the well sketch headers.

The Select Header drop-down list displays the well column (as shown left to right).  For clarity, the column header text is added to the label (in this case Image [<Logo>])

Column menu

Functions controlling the well sketch columns.

The Select Column drop-down list displays the well column (as shown left to right).  For clarity, the column header text is added to the label (in this case Axis [MD])

Note the drop-down arrow next to the Copy button.  This drops down a menu allowing copying of the current or all well columns as a bitmap which can be pasted into other documents (e.g. presentation, drilling program, etc).

Survey data menu

Provides access to the Survey Manager and a dialog to quickly link well columns to surveys.

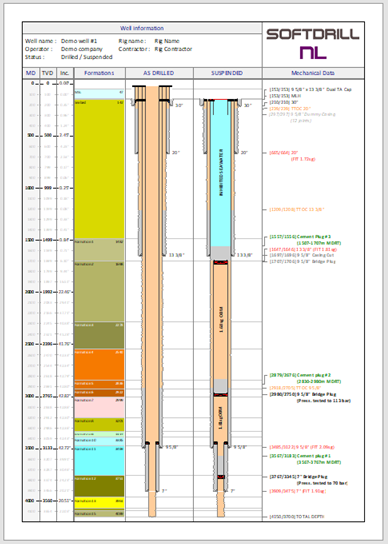

Well sketch preview

A preview of the well sketch at the current zoom factor.

Status bar - Well sketch information

Provides information on the current page setup for the well sketch.

Program messages

Program messages  are displayed here.
