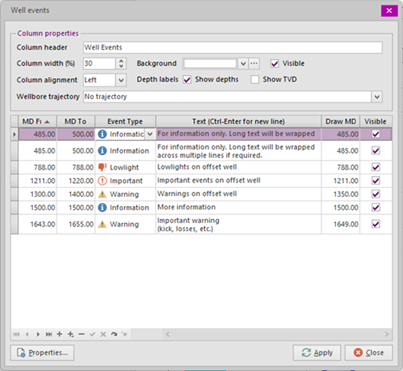

The Well Events column was designed for offset well reviews and is similar to the Annotations column type.  However, unlike the Annotations column, each label has an icon and instead of a single depth, a depth range may be specified.  If MD To is equal to MD From, only a single depth will be shown with the label. The icon drawn is determined by the Event Type.

•Information. Notional information, such as FIT/LOT values, mud weights used, etc.)

•Highlight. Things that went particularly well or better than on comparable wells. For example, high ROP, good directional response from BHA, etc.

•Lowlight. Things that did NOT go particularly well or worse than on comparable wells. For example poor ROP, excessive rig up time, etc.

•Important. Something worth noting that does not result in an immediate risk for the well but rather an operational risk. For example, a certain bend angle in the mud motor must be run to achieve the required build rate.

•Warning. Something worth noting that presents an immediate risk and should be mitigated on future wells. For example, kicks, losses, etc.

The label - with icon, MD (range) and optionally TVD's - will be drawn at Draw MD.  Draw MD is by default the same as MD From unless changed specifically.  This is primarily intended for Well Events with a depth range (e.g. a zone where losses were experienced).  The label can then be forced to be drawn anywhere in the depth range.

To force the label to continue on a new line, press [Ctrl]-[Enter] when editing the cell.

Use the Properties button to set the font properties for one or more labels.
