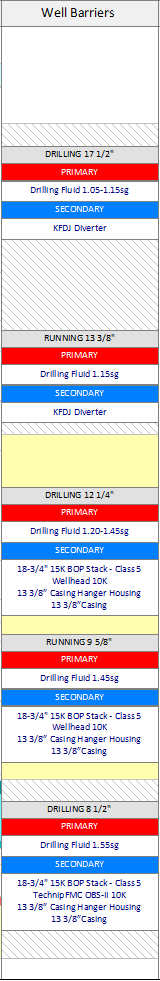

The Well Barriers column provides the option to display textual representations of the applicable barriers in different sections of the well.
.png)
|
.png)
|
Column properties
|
|
Similar to all other column types. Although the wellbore trajectory may be specified, it has no function in this column type.
|
|
|
.png)
|
|
.png)
|
Barrier/hole sections
|
|
Define sections of the well. Each section can be highlighted with a solid color (via Properties...) or a diagonal fill pattern to visually separate them. Barrier tables will be clipped to the section they belong to.
|
|
|
.png)
|
|
.png)
|
Barrier tables
|
|
Any number of tables can be defined per section, but when drawn they will be clipped to the rectangle defined by the barrier/hole section. Use the Draw at MD column to optimize placement of the table within the barrier/hole section. The colors used to fill the captions (Caption, Primary and Secondary) can be defined under Column Properties.
 Note that any barrier table overlapping an axis break, will be hidden.
|
|
|
.png)
|
|
