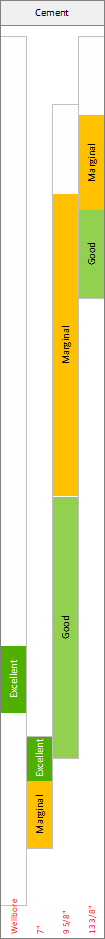

The Cement Evaluation column allows the users to define multiple annuli and fill them with one or more items defining the quality of the cement (or the result of a cement bond log evaluation).
This column type is primarily intended for P&A planning where it may be used in conjunction with a Rock Classification column and a Well Schematic column to visualize barriers being placed across all annuli and across cap rock.
.png)
|
.png)
|

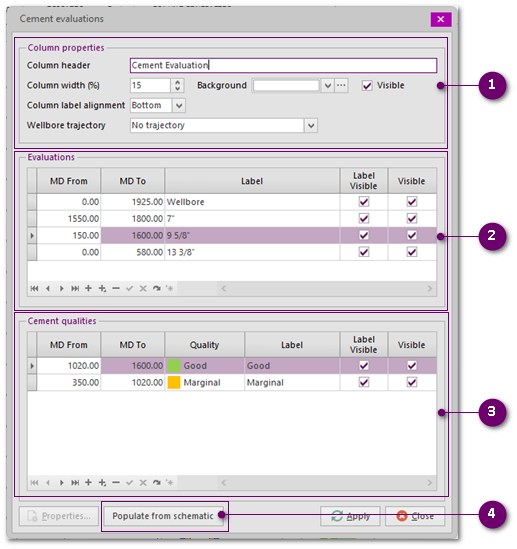

Column properties
|
|
Similar to all other column types but 'Column label alignment' determines where the label for each column (if specified, show in red on the left) is drawn.
|
|
.png)
|
Evaluations
|
|
Evaluations are the equivalent of an annulus. It defines the columns drawn within the well column.
|
|
.png)
|
Cement qualities
|
|
Specifies sections of cement quality evaluation within an Evaluation (Annulus).
|
|
.png)
|
Populate from schematic
|
|
Opens a dialog from which a well schematic can be selected (the dialog shows all well schematic columns available in the well sketch.
After selecting a column and clicking OK the Cement Evaluations (annuli) for this column will be built from the casing data in the selected well schematic column.
If the column already contains Cement Evaluations, a dialog box will be shown to confirm existing data may be overwritten permanently.
|
|
