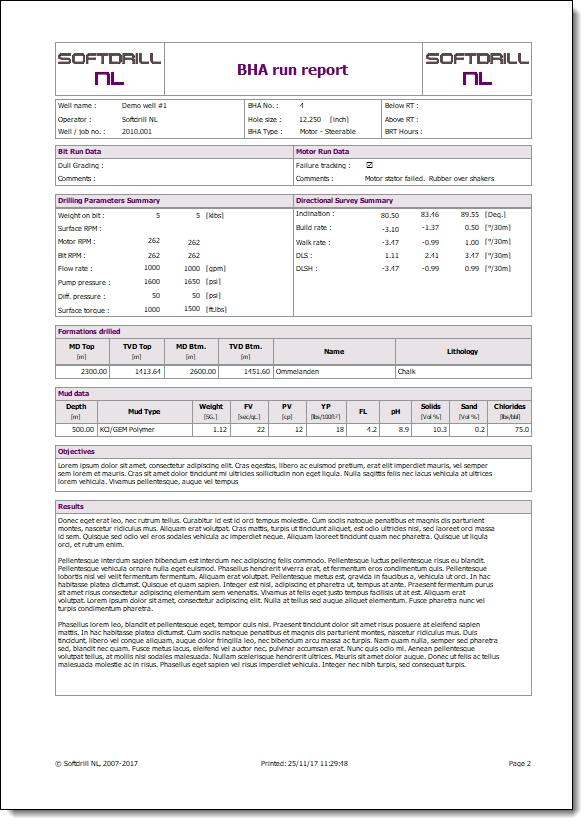

The BHA Run Report is a fully detailed report for the BHA run.  It provides summary data for drilling parameters, survey results and describes the objectives and results for the run.

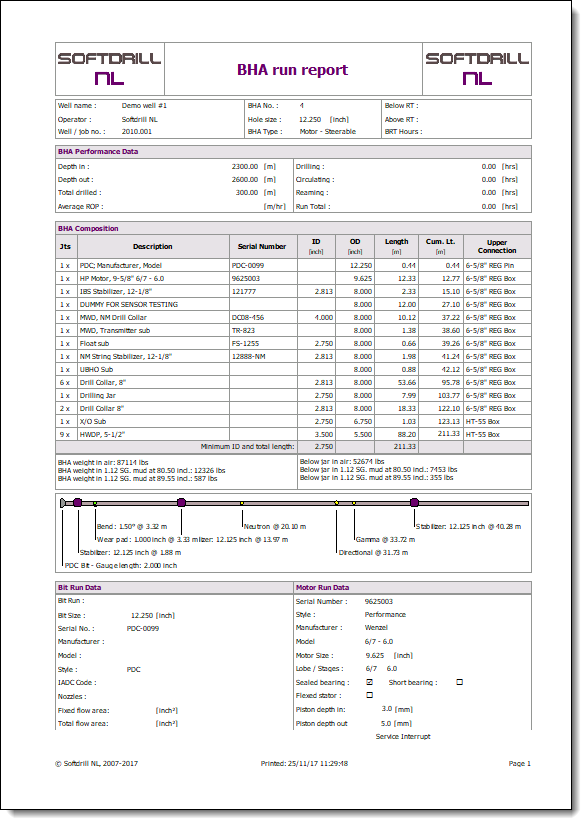

Optionally, the BHA profile schematic (showing all profile points relative to the bit) and detailed parameters may be omitted from the report by unchecking the relevant boxes in the print dialog.



Note that the BHA Run Report is only printed correctly once daily activities that are labeled for BHA In and BHA Out (activity code 401 and 404) are available and the BHA has been calculated.  To print an intermediate report for a give date and time when the BHA is still in hole, it is possible to temporarily lock BHA data sections and print the report.

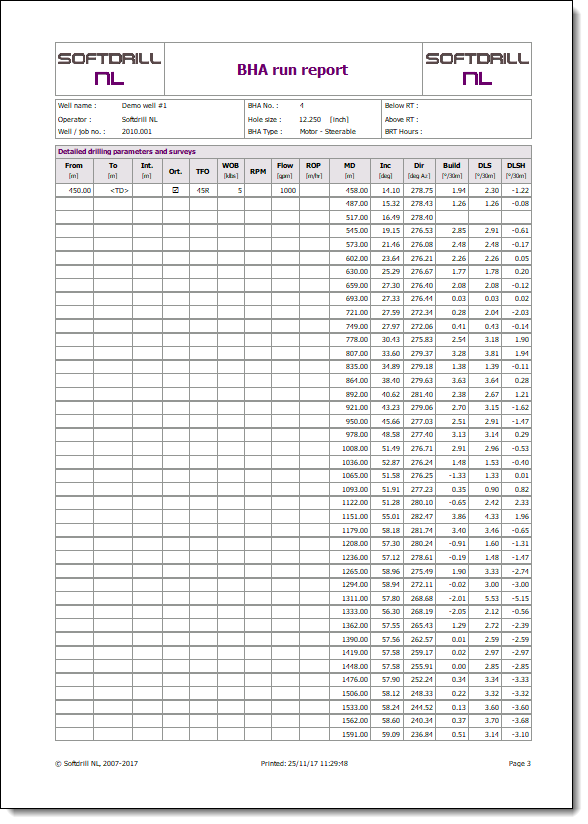

The detailed drilling parameters, provides a listing for each drilling parameters record as input under wellpath.  This listing is limited to records in the range between BHA depth in and BHA depth out.  For each record, all surveys entered on the wellpath are printed (where the survey depth falls in the depth range for the parameters record).
